NC-86140

CNC Compression Spring Machine for 5.0–14.0mm Wire

NC-86160

CNC Compression Spring Machine for 7.0–16.0mm Wire

Engineered for high-volume compression spring production, this machine features advanced 6-axis CNC control, flexible pitch adjustment, independent OD control, and rapid program recall for fast, efficient changeovers. The intuitive multi-language computer interface (including English) makes operation straightforward for your team. Fully supports OEM and ODM requirements and includes a three-color status light for clear machine monitoring.

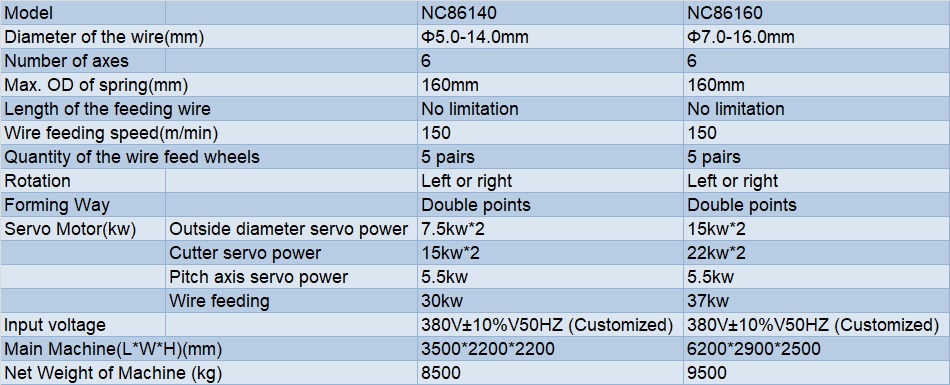

• Wire Range: 5.0-14.0 / 7.0–16.0mm
• 6-Axis CNC Control
• Max Spring OD: 160mm
• Support OEM & ODM

Designed for Heavy Duty Applications

• Industrial and Heavy Machinery
• Industrial Stamping Presses:
• Injection Molding Machines
• Large Industrial Valves
• Automotive and Off-Road
• Heavy-Duty Vehicle Suspensions:
• Clutch and Powertrain Dampers
• Agricultural Equipment:
• Structural and Infrastructure
• Railway and Track Components
• Seismic and Vibration Isolators
