NC-86100
CNC Compression Spring Machine for 3.0–10.0mm Wire
NC-86120
CNC Compression Spring Machine for 4.0–12.0mm Wire
Engineered for high-volume compression spring production, this machine features advanced 6-axis CNC control, flexible pitch adjustment, independent OD control, and rapid program recall for fast, efficient changeovers. The intuitive multi-language computer interface (including English) makes operation straightforward for your team. Fully supports OEM and ODM requirements and includes a three-color status light for clear machine monitoring.
- Wire Range: 3.0-10.0 / 4.0–12.0mm
- 6-Axis CNC Control
- Max Spring OD: 140mm
- Support OEM & ODM
Designed for Multiple Compression Spring Applications
They are suitable for producing a wide range of larger-wire compression spring products, including:
- Standard compression springs
- Oil seal springs
- Conical springs
- Automotive springs
- Wave springs
If you have a drawing or a finished spring sample, our team can help confirm the right model for your product before quotation.
Competitive edges
Compared to traditional mechanical spring machines, the NC86120 gives operators greater flexibility and simpler parameter control. Its computerized servo system displays real-time axis positions, wire feed data, production speed, and output quantity directly on the screen. Program settings can be stored, recalled, and adjusted through the control system, enabling faster and more efficient production changeovers

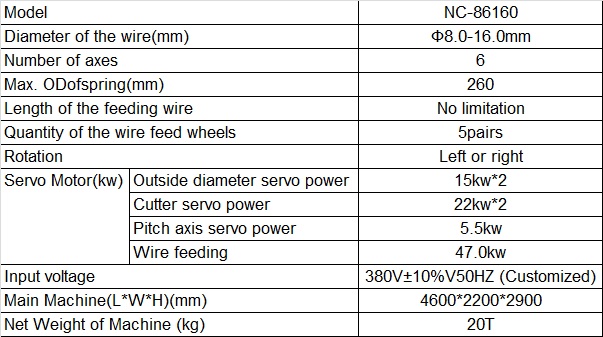

Technical specifications
